Thermal Solutions

Hikvision Temperature Screen Solution​​

A thermographic camera is a device that creates an image using infrared radiation, similar to a common camera that forms an image using visible light. It can detect the temperature of an object or person. This product is a Bullet Camera with many unique features that make it the best to help you protect your business.

Some of the features of this camera include Smart Detection, a feature that focuses on the temperature on humans and avoids false alarms created by other heat sources; Advanced Algorithms, Hikvision created high accuracy and technologically advanced algorithms to ensure accurate temperature measurement; Bi-Spectrum Monitoring, the camera has both the thermal and optical image channels which are apart from the temperature measurement; and Embedded Audio Alarm, if someone triggers the camera, an alarm will sound immediately to let people know that an abnormal temperature is detected.


• DS-2TD2617B-6/PA​​
• 160 × 120 Resolution in Thermal Channel, High Sensitivity Sensor​​
• Accuracy: ±0.9° F (±0.5° C) at 4.92 ft to 9.84 ft (1.5 m to 3 m)​​
• H.265/H.264/MJPEG​​
• 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)​​
• IR Distance Up to 131 ft (40 m)​​
• 12 VDC ±20%​​


Hikvision Temperature Screen Solution​​

A thermographic camera is a device that creates an image using infrared radiation, similar to a common camera that forms an image using visible light. It can detect the temperature of a person. This particular product is a Handheld Camera with many unique features that make it the best to help you protect your business.

Some of the features of this camera include Smart Detection, a feature that focuses on the temperature on humans and avoids false alarms created by other heat sources; Advanced Algorithms, Hikvision created high accuracy and technologically advanced algorithms to ensure accurate temperature measurement; Bi-Spectrum Monitoring, the camera has both the thermal and optical image channels which are apart from the temperature measurement; and Embedded Audio Alarm, if someone triggers the camera, an alarm will sound immediately to let people know that an abnormal temperature is detected.

• DS-2TP21B-6AVF/W​​
• Thermal Resolutions:160 x 120​​
• Optical resolutions: 640 x 480​​
• Measurement range: 30-45°C​​
• Touch screen​​
• Accuracy: ±0.5°C​​
• Bi-spectrum image fusion​​
• Supports Wi-Fi​​
• Supports audio alarms​​
• Automatic screenshots and uploading​​
• Tripod is extra

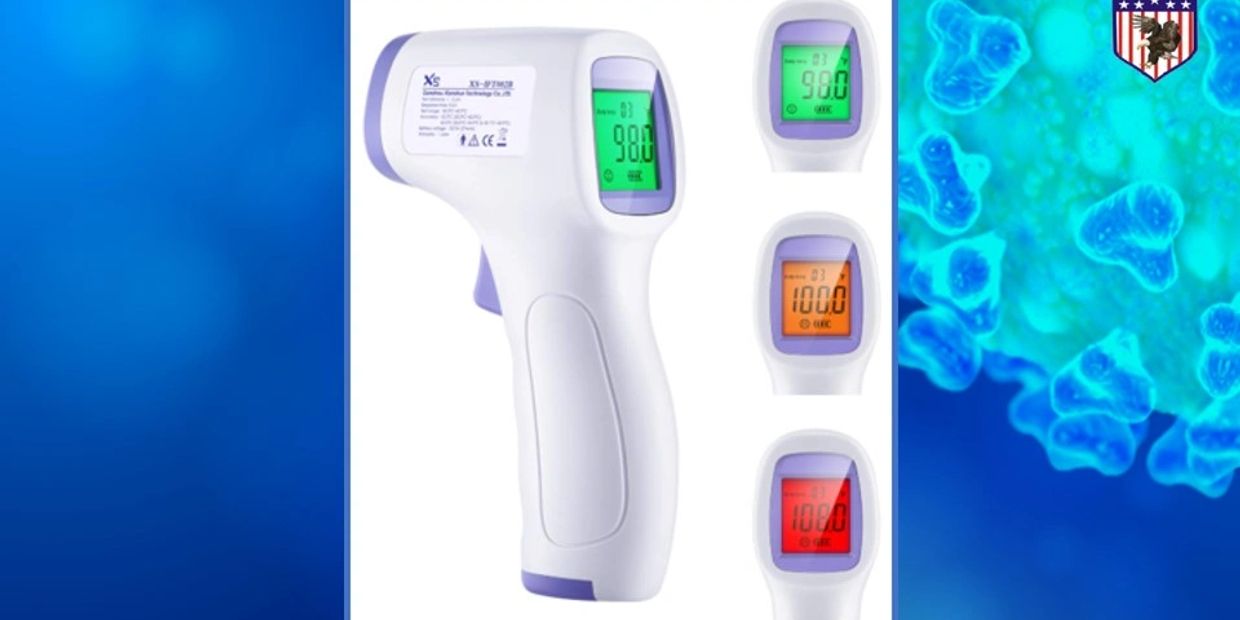

These thermometers allow you to take a temperature without the forehead contact that most thermometers reacquire. With visible indicators for different temperatures ranges, this thermometer will light up green, yellow, or red depending on the measured temperature of a person and alert nearby people audibly. With advanced technology, the No-Touch Thermometers can measure the body temperature from  34.0°C - 42.9°C (93.2°F - 109.22°F)​​ and object temperature from 0°C-100°C (32°F - 212°F).

• LED Indicators with sound alarm for different status:​​

                      Green (normal)​​

                      Yellow (low fever) ​​

                      Red (high fever)​​

• Detection Distance: 1 cm–3 cm​​
• Precision: 0.1°C​​
• Detection Error: ±0.2°C​​
• Method: Non-contact mid-forehead detection​
• Power: AAA battery x 2​​​
• Response Time: ≤2 seconds​​
• Data Storage: 32 sets​​
• Size: 147.2 * 41 * 123.5mm​​
• 40 per carton​​

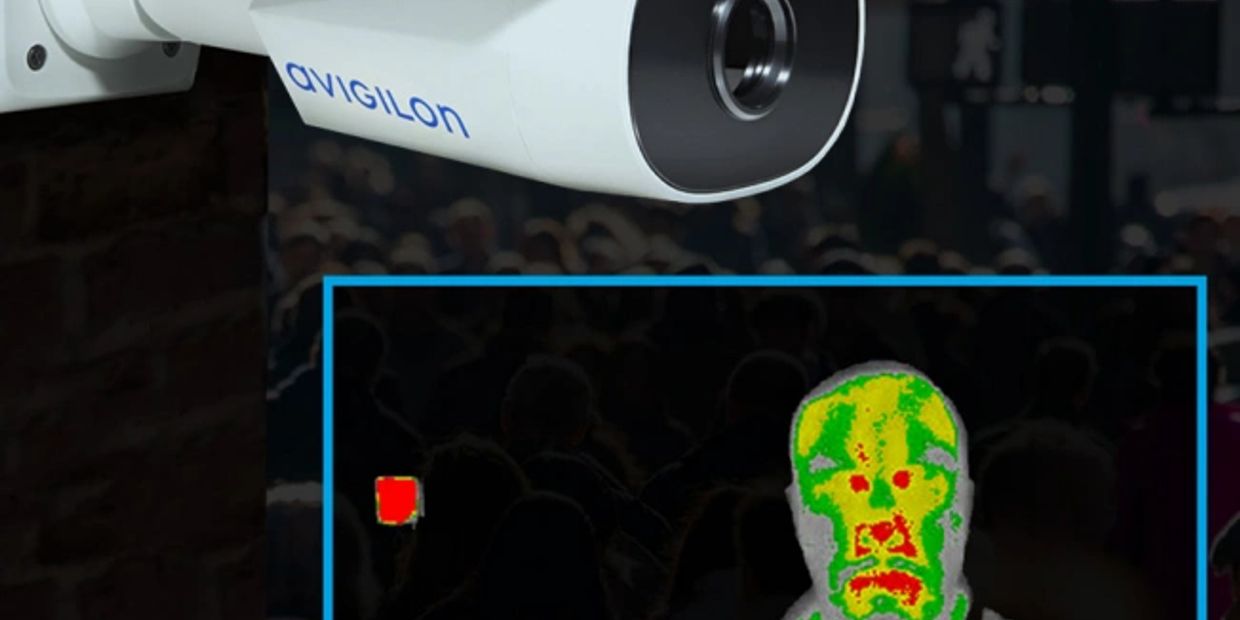

Thermal camera technology increases the efficiency of traditional physical screening efforts with a high-throughput and contactless method of pre-screening people at access points. The Avigilon H4 Thermal Elevated Temperature Detection solution detects and notifies operators of people with elevated skin temperatures, so that further evaluation may take place. The H4 Thermal Elevated Temperature Detection camera is embedded with edge-based analytics to detect faces and notify operators of elevated skin temperature. This security-grade thermal camera provides low friction, contactless alternative to traditional screening methods. It enables high-throughput pre-screening of people to detect elevated skin temperatures to keep facilities, and its people, safe.

The H4 Thermal ETD solution enables a high-throughput and non-invasive method of pre-screening people at entry points to detect elevated skin temperatures – helping to keep facilities and their people safe. To set up the solution, the thermal camera should be positioned at a height of 1.5 to 2 meters (or 5 to 6.5 feet) with the individual and the blackbody within the same field of view. The distance between the thermal camera and the individual should be 1 to 1.5 meters (or 3 to 5 feet). For best results, the thermal camera should be directed towards a non-reflective background behind the individual being screened and deployed in indoor environments with a stable ambient temperature of 65 to 80°F (or 18 to 25°C).
